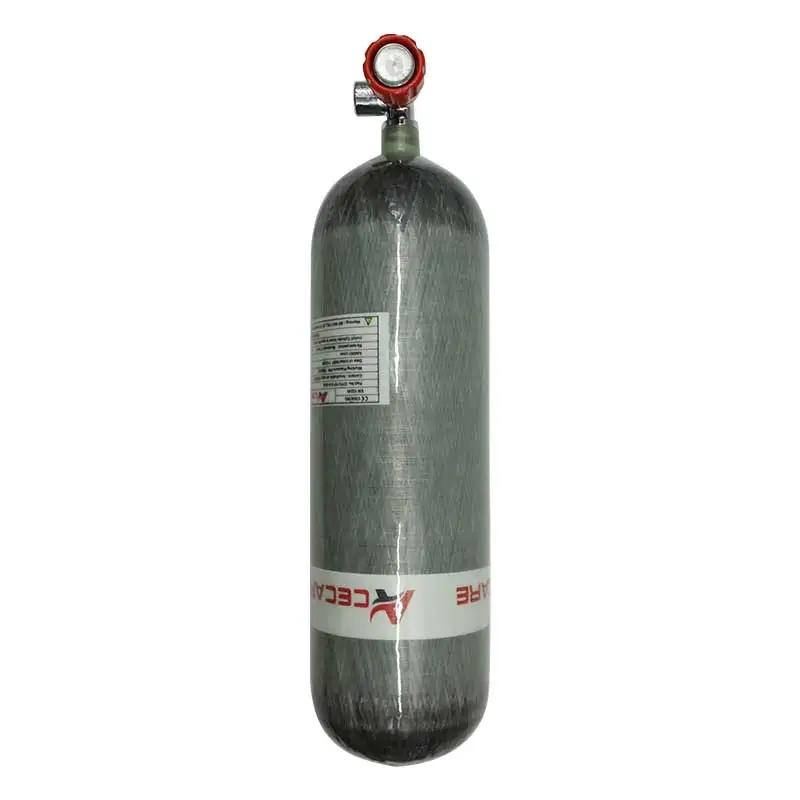

6.8L CE carbon fiber cylinder air tank with valve for paintball refilling
30 people are viewing this right now
17 products sold in last 5 hours
Selling fast! Over 16 people have this in their carts
- Brand: Acecare
- Product Volume: 6.8L
- Certificate: CE
- Availability: in stock
- Warehouse: USA、CN、RUS
Composite Cylinder (Aluminum alloy liner with carbon fiber overwrap) designed for diving/firefighting/paintball applications. These cylinders are rated for 300bar nominal working pressure . Available in a range of water volume (1.1L,2L,3L,6.8L,9L,12L)
Gas Cylinder introduction
Gas cylinder liners are made of high quality 6061 aluminum alloy materials. The manufacturing procedure includes punching, drawing, heat treatment, CNC flow forming spinning, inner surface treatment, etc. The wall thickness is uniform with little difference. The shape of the shoulder and base are produced with high precision and consistency.
- 15-year lifetime warranty;
- 5-year requalification period; 15-year life;
- Smooth, high quality, easy-care exterior finish.
|
Carbon Fiber Composite Cylinder lined with
Carbon Fiber Composite Cylinder lined with Aluminium Alloy |
|||||||
|
Standard
|
Part
No.
|
Thread size
|
Water
Capacity
(liters)
|
Empty
Weight
(kg)
|
Diameter
(mm)
|
Length
(mm)
|
Working
Pressure
(Mpa)
|
|
GB
|
CRPIII-55-0.35-30-T
|
M18*1.5
|
0.35
|
0.45
|
61
|
235
|
30
|
|
CRPIII-55-0.5-30-T
|
M18*1.5
|
0.50
|
0.65
|
61
|
295
|
30
|
|
|
CRPIII-79-1.1-30-T
|
M18*1.5
|
1.10
|
1.10
|
85.5
|
315
|
30
|
|
|
CRPIII-101-1.5-20-T
|
M18*1.5
|
1.50
|
1.0
|
108
|
207
|
20
|
|
|
CRPIII-105-1.6-20-T
|
M18*1.5
|
1.60
|
1.20
|
112
|
268
|
20
|
|
|
CRPIII-88-2.0-30-T
|
M18*1.5
|
2.0
|
1.50
|
96
|
433
|
30
|
|
|
CRPIII-120-2.17-30-T
|
M18*1.5
|
2.17
|
1.5
|
112
|
380
|
30
|
|
|
CRP-III-120-2.4-20-T
|
M18*1.5
|
2.40
|
1.70
|
128
|
307
|
20
|
|
|
CRPIII-120-2.5-20-T
|
M18*1.5
|
2.50
|
1.80
|
128
|
312
|
20
|
|
|
CRPIII-125-2.7-20-T
|
M18*1.5
|
2.70
|
1.90
|
133
|
308
|
20
|
|
|
CRPIII-125-4.7-30-T
|
M18*1.5
|
4.70
|
3.0
|
137
|
492
|
30
|
|
|
CRPIII-145-6.8-30-T
|
M18*1.5
|
6.80
|
4.10
|
157
|
528
|
30
|
|
|
CRPIII-161-9.0-30-T
|
M18*1.5
|
9.0
|
5.20
|
174
|
560
|
30
|
|
|
CRPIII-192-12-30-T
|
M18*1.5
|
12.0
|
6.80
|
208
|
575
|
30
|
|
|
CRPIII-220-20-30-T
|
M18*1.5
|
20.0
|
12.0
|
222
|
770
|
30
|
|
|
CE
|
CRPIII-105-3.0-30-T
|
M18*1.5
|
3.0
|
2.10
|
114
|
446
|
30
|
|
CRPIII-144-6.8-30-T
|
M18*1.5
|
6.80
|
3.90
|
157
|
530
|
30
|
|
|
CRPIII-162-9.0-30-T
|
M18*1.5
|
9.0
|
5.30
|
175
|
560
|
30
|
|
|
DOT
|
TC 6.8L-30MPA
|
ISO M18*1.5
|
6.8
|
3.90
|
157
|
/
|
30
|
|
TC 4.7L-31MPA
|
0.875-14UNF-2B
|
4.7
|
2.90
|
140.4
|
31
|
||
|
TC 6.8L-31MPA
|
0.875-14UNF-2B
|
6.8
|
3.90
|
172.5
|
31
|
||
|
TC 8.5L-15MPA
|
0.750-16UNF-2B
|
8.5
|
3.10
|
166.8
|
15
|
||
|
TC 9.0L-31MPA
|
0.875-14UNF-2B
|
9.0
|
4.90
|
174.3
|
31
|
||
| Weight | 7 lbs |
|---|---|
| Dimensions | 18 × 18 × 59 in |
| Place of Origin | Liaoning, China |
| Use | Scuba cylinder |
| Water capacity | 6.8L |
| Diameter | 96mm |
| Thread | M18*1.5 |
| Brand Name | ACECARE |
| Pressure | High, 30Mpa |
| Working pressure | 30MPa |
| Normal Weight | 3.9kg |
| Model Number | CRPIII-145-6.8-30-T |
| Certification | GB |
| Outside Diameter | 157mm |
