Carbon Fiber Cylinder With CE Approved 2L 4500Psi 300Bar With Valve

$150.48

Category:

Products Description of Carbon Fiber Cylinder With CE Approved 2L 4500Psi 300Bar With Valve



2L Carbon Fiber Cylinder Use For Air Gun Hunting
2L Carbon Fiber Cylinder Use For Air Gun Hunting
2L Carbon Fiber Cylinder Use For Air Gun Hunting
2L Carbon Fiber Cylinder Use For Air Gun Hunting
2L Carbon Fiber Cylinder Use For Air Gun Hunting



Gas cylinder (Carbon Fiber Cylinder With CE Approved 2L 4500Psi 300Bar With Valve)

Acecare Tech produces portable gas cylinders through advanced technology. Compared with conventional respirators, we use aluminum or aluminum composite cylinders instead of steel ones, with a weight reduction of 40%-70%, so they are more preferable for people with breathing problems.

Gas Cylinder introduction

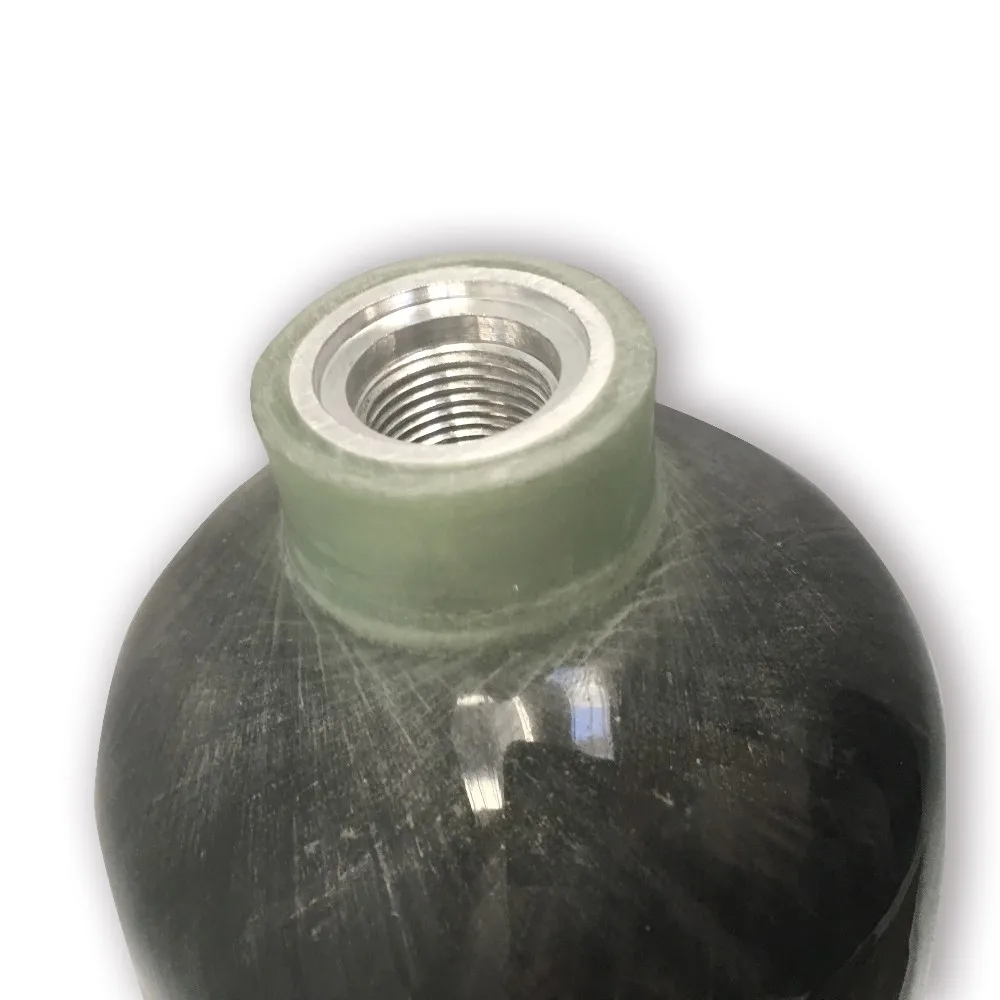

Gas cylinder liners are made of high quality 6061 aluminum alloy materials. The manufacturing procedure includes punching, drawing, heat treatment, CNC flow forming spinning, inner surface treatment, etc. The wall thickness is uniform with little difference. The shape of the shoulder and base are produced with high precision and consistency.

  • 15-year lifetime warranty;
  • 5-year requalification period; 15-year life;
  • Smooth, high quality, easy-care exterior finish.
Carbon Fiber Composite Cylinder lined with

Carbon Fiber Composite Cylinder lined with Aluminium Alloy

Standard
Part
No.
Thread size
Water
Capacity
 (liters)
Empty
Weight
(kg)
Diameter

(mm)
Length

(mm)
Working
Pressure
(Mpa)
GB
CRPIII-55-0.35-30-T
M18*1.5
0.35
0.45
61
235
30
CRPIII-55-0.5-30-T
M18*1.5
0.50
0.65
61
295
30
CRPIII-79-1.1-30-T
M18*1.5
1.10
1.10
85.5
315
30
CRPIII-101-1.5-20-T
M18*1.5
1.50
1.0
108
207
20
CRPIII-105-1.6-20-T
M18*1.5
1.60
1.20
112
268
20
CRPIII-88-2.0-30-T
M18*1.5
2.0
1.50
96
433
30
CRPIII-120-2.17-30-T
M18*1.5
2.17
1.5
112
380
30
CRP-III-120-2.4-20-T
M18*1.5
2.40
1.70
128
307
20
CRPIII-120-2.5-20-T
M18*1.5
2.50
1.80
128
312
20
CRPIII-125-2.7-20-T
M18*1.5
2.70
1.90
133
308
20
CRPIII-125-4.7-30-T
M18*1.5
4.70
3.0
137
492
30
CRPIII-145-6.8-30-T
M18*1.5
6.80
4.10
157
528
30
CRPIII-161-9.0-30-T
M18*1.5
9.0
5.20
174
560
30
CRPIII-192-12-30-T
M18*1.5
12.0
6.80
208
575
30
CRPIII-220-20-30-T
M18*1.5
20.0
12.0
222
770
30
CE
CRPIII-105-3.0-30-T
M18*1.5
3.0
2.10
114
446
30
CRPIII-144-6.8-30-T
M18*1.5
6.80
3.90
157
530
30
CRPIII-162-9.0-30-T
M18*1.5
9.0
5.30
175
560
30
DOT
TC 6.8L-30MPA
ISO M18*1.5
6.8
3.90
157
/
30
TC 4.7L-31MPA
0.875-14UNF-2B
4.7
2.90
140.4
31
TC 6.8L-31MPA
0.875-14UNF-2B
6.8
3.90
172.5
31
TC 8.5L-15MPA
0.750-16UNF-2B
8.5
3.10
166.8
15
TC 9.0L-31MPA
0.875-14UNF-2B
9.0
4.90
174.3
31
0.35L Carbon Fiber Cylinder descriptions
Weight 1.5 kg
Dimensions 14 × 14 × 48 cm
Color

Grey

Water Capacity

2L

Model Number

CRPIII-88-0.35-30-T

Working Pressure

300bar

length

433mm

Pressure

High

Certification

CE Approval

Use

Compressed air, Paintball

Diameter

96mm
