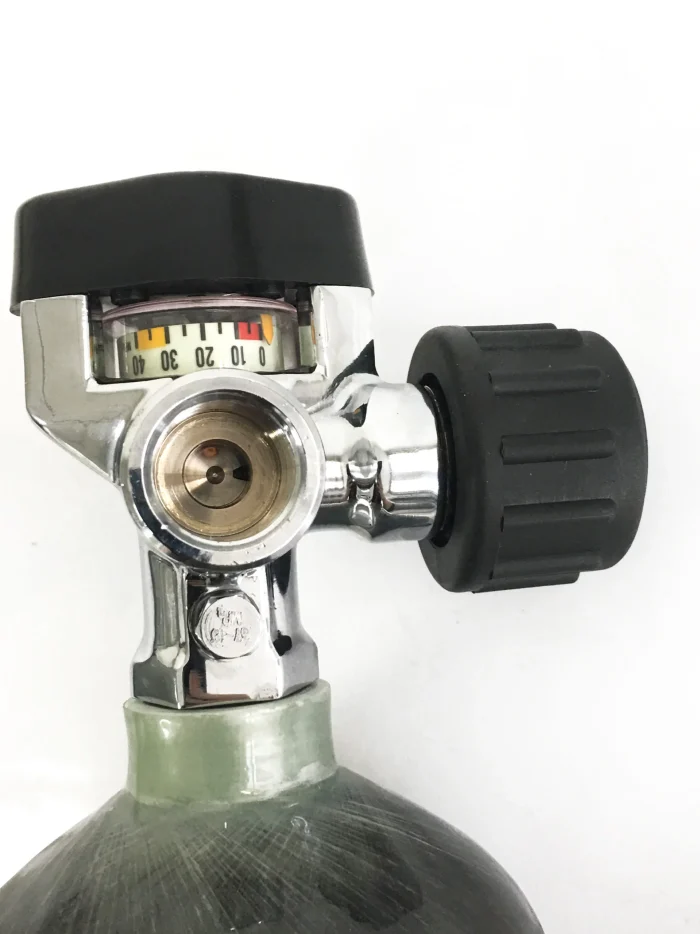

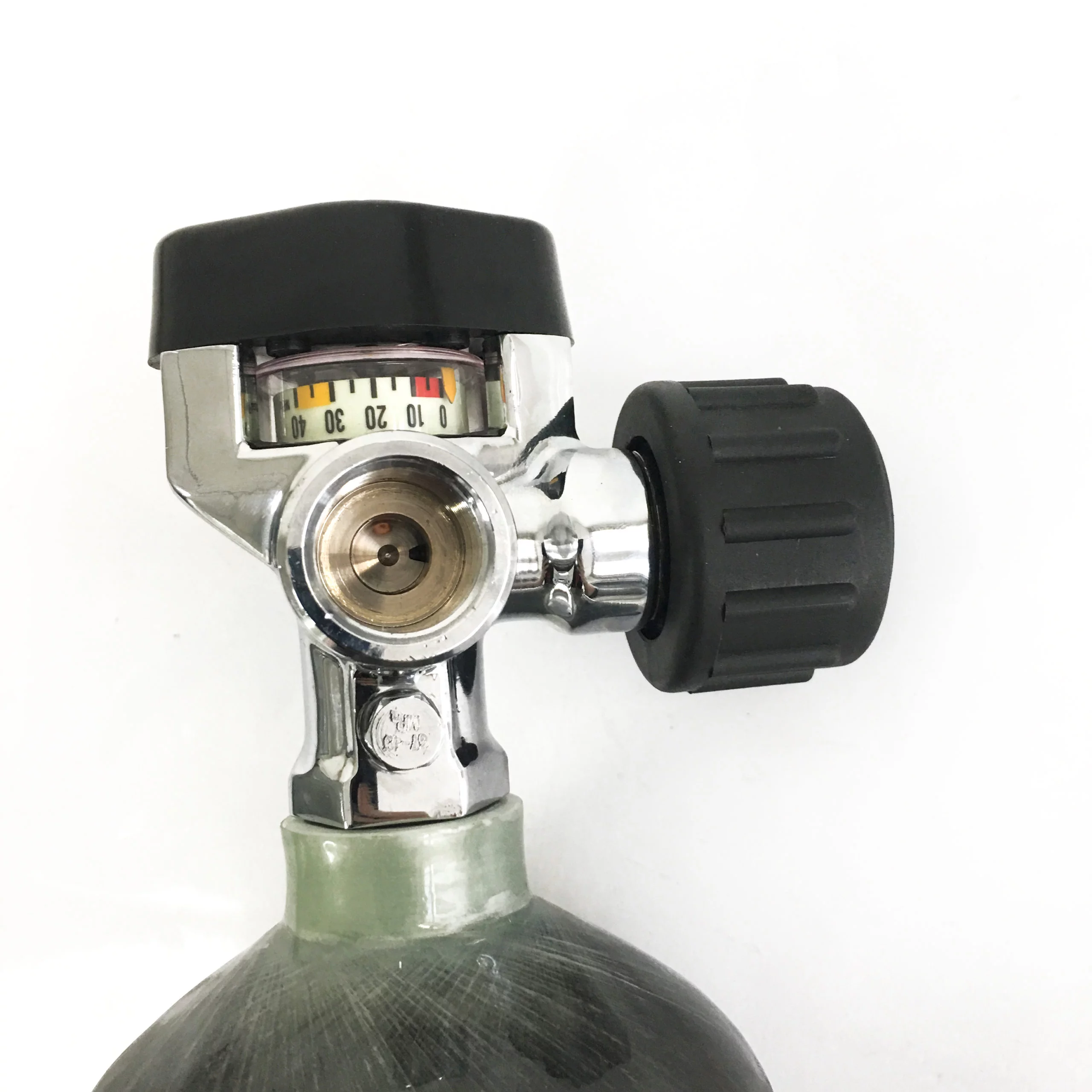

3L CE Carbon Fiber Cylinder Composite Gas Cylinder High Pressure Gas Cylinder with Valve
22 people are viewing this right now
12 products sold in last 12 hours
Selling fast! 1 person has this in their cart
- Brand: Acecare
- Product Volume: 3L
- Certificate: CE
- Availability: in stock
- Warehouse: USA、CN、RUS
Composite Cylinder (Aluminum alloy liner with carbon fiber overwrap) designed for diving/firefighting/paintball applications. These cylinders are rated for 300bar nominal working pressure . Available in a range of water volume (1.1L,2L,3L,6.8L,9L,12L)
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Products Description of 3L Carbon Fiber Cylinder Composite Gas Cylinder High Pressure Gas Cylinder with Valve
Gas cylinder (3L Carbon Fiber Cylinder Composite Gas Cylinder High Pressure Gas Cylinder with Valve)
Acecare Tech produces portable gas cylinders through advanced technology. Compared with conventional respirators, we use aluminum or aluminum composite cylinders instead of steel ones, with a weight reduction of 40%-70%, so they are more preferable for people with breathing problems.
Gas Cylinder introduction
Gas cylinder liners are made of high quality 6061 aluminum alloy materials. The manufacturing procedure includes punching, drawing, heat treatment, CNC flow forming spinning, inner surface treatment, etc. The wall thickness is uniform with little difference. The shape of the shoulder and base are produced with high precision and consistency.
- 15-year lifetime warranty;
- 5-year requalification period; 15-year life;
- Smooth, high quality, easy-care exterior finish.
|
Carbon Fiber Composite Cylinder lined with
Carbon Fiber Composite Cylinder lined with Aluminium Alloy |
|||||||
|
Standard
|
Part
No.
|
Thread size
|
Water
Capacity
(liters)
|
Empty
Weight
(kg)
|
Diameter
(mm)
|
Length
(mm)
|
Working
Pressure
(Mpa)
|
|
GB
|
CRPIII-55-0.35-30-T
|
M18*1.5
|
0.35
|
0.45
|
61
|
235
|
30
|
|
CRPIII-55-0.5-30-T
|
M18*1.5
|
0.50
|
0.65
|
61
|
295
|
30
|
|
|
CRPIII-79-1.1-30-T
|
M18*1.5
|
1.10
|
1.10
|
85.5
|
315
|
30
|
|
|
CRPIII-101-1.5-20-T
|
M18*1.5
|
1.50
|
1.0
|
108
|
207
|
20
|
|
|
CRPIII-105-1.6-20-T
|
M18*1.5
|
1.60
|
1.20
|
112
|
268
|
20
|
|
|
CRPIII-88-2.0-30-T
|
M18*1.5
|
2.0
|
1.50
|
96
|
433
|
30
|
|
|
CRPIII-120-2.17-30-T
|
M18*1.5
|
2.17
|
1.5
|
112
|
380
|
30
|
|
|
CRP-III-120-2.4-20-T
|
M18*1.5
|
2.40
|
1.70
|
128
|
307
|
20
|
|
|
CRPIII-120-2.5-20-T
|
M18*1.5
|
2.50
|
1.80
|
128
|
312
|
20
|
|
|
CRPIII-125-2.7-20-T
|
M18*1.5
|
2.70
|
1.90
|
133
|
308
|
20
|
|
|
CRPIII-125-4.7-30-T
|
M18*1.5
|
4.70
|
3.0
|
137
|
492
|
30
|
|
|
CRPIII-145-6.8-30-T
|
M18*1.5
|
6.80
|
4.10
|
157
|
528
|
30
|
|
|
CRPIII-161-9.0-30-T
|
M18*1.5
|
9.0
|
5.20
|
174
|
560
|
30
|
|
|
CRPIII-192-12-30-T
|
M18*1.5
|
12.0
|
6.80
|
208
|
575
|
30
|
|
|
CRPIII-220-20-30-T
|
M18*1.5
|
20.0
|
12.0
|
222
|
770
|
30
|
|
|
CE
|
CRPIII-105-3.0-30-T
|
M18*1.5
|
3.0
|
2.10
|
114
|
446
|
30
|
|
CRPIII-144-6.8-30-T
|
M18*1.5
|
6.80
|
3.90
|
157
|
530
|
30
|
|
|
CRPIII-162-9.0-30-T
|
M18*1.5
|
9.0
|
5.30
|
175
|
560
|
30
|
|
|
DOT
|
TC 6.8L-30MPA
|
ISO M18*1.5
|
6.8
|
3.90
|
157
|
/
|
30
|
|
TC 4.7L-31MPA
|
0.875-14UNF-2B
|
4.7
|
2.90
|
140.4
|
31
|
||
|
TC 6.8L-31MPA
|
0.875-14UNF-2B
|
6.8
|
3.90
|
172.5
|
31
|
||
|
TC 8.5L-15MPA
|
0.750-16UNF-2B
|
8.5
|
3.10
|
166.8
|
15
|
||
|
TC 9.0L-31MPA
|
0.875-14UNF-2B
|
9.0
|
4.90
|
174.3
|
31
|
||
| Color | Gray |
|---|---|
| Water Capacity | 3L |
| Application | Paintball/Diving/Firefighting/Industry Used |
| Working Pressure | 30Mpa |
| Length | 466 mm |
| Type | Paintball tank |
| Pressure | High |
| Use | compression air |
| Certification | CE |
| Product name | Carbon Fiber Gas Cylinder |
