Acecare 6.8L Carbon Fiber SCBA Cylinder – Type 4 300Bar Air Tank for Firefighting & Rescue
$498.00
Product Name: Carbon Fiber PET Composite Cylinder
Water Capacity/Air Capacity: 6.8L/2040L
Liner Material: PET
Working Time: 45-60min
Working Pressure: 300BAR
Empty Weight: 2.6kg
Diameter: 159mm
Length: 520mm
Thread: M18*1.5
Standard: EN12245
In stock
Why Buy From Acecare
- Ships in 1–2 Business Days from US Warehouse
- 30-Day Easy Returns
- Expert Customer Service
- Tracking Info Provided After Shipment

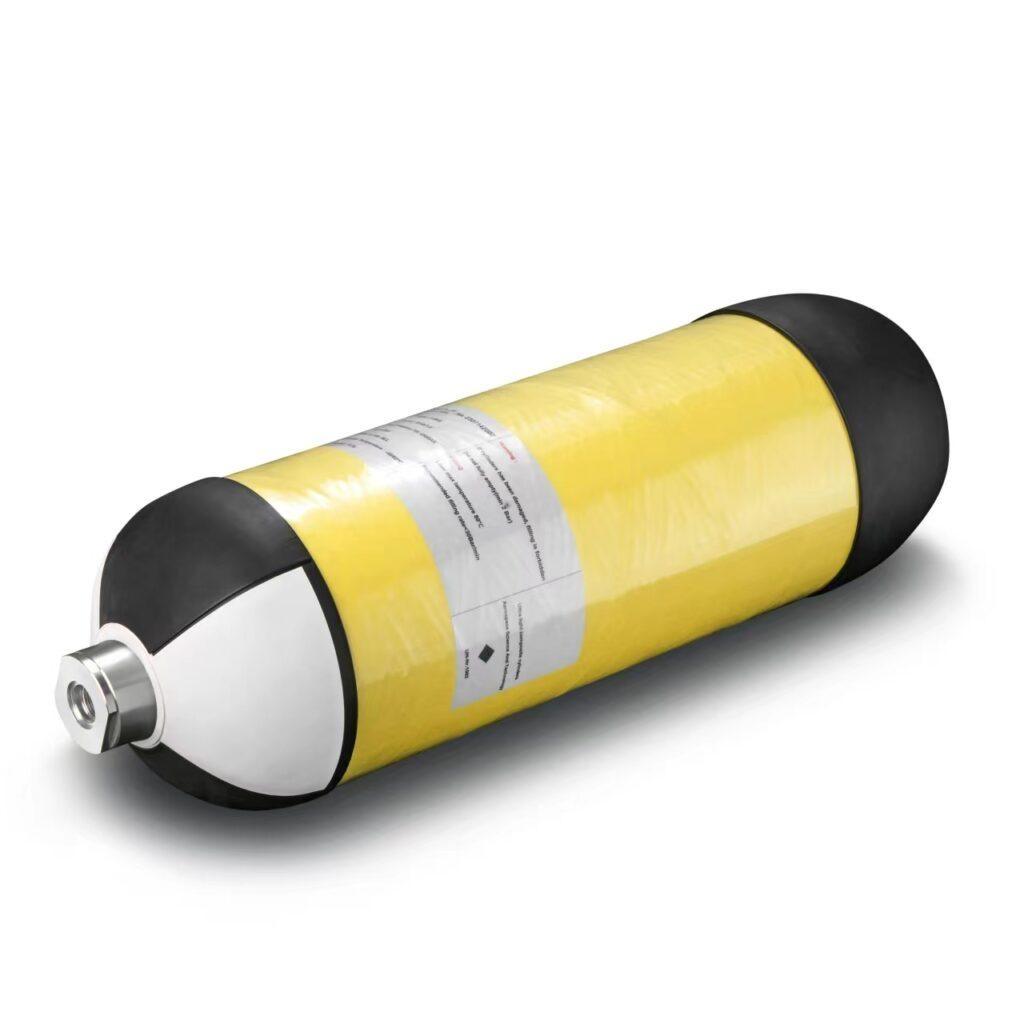

6.8L Carbon Fiber Wrapped Self-Contained Air Breathing Apparatus with Plastic Liner
Type 4 Cylinder for Fire Fighting
⭐Product details:
6.8 L Type 4 SCBA carbon fiber wrapped cylinder with plastic liner
Rated 300 Bar / 4500 Psi — lightweight yet ultra-strong
Ideal for firefighting, rescue, and industrial breathing systems
CE & EN12245 certified – meets safety standards for breathing air use
15-year design life, leak-tested and hydro-tested for reliability
⭐Main Uses
⭐ Advantages of the Products
- Lightweight and Certified:
Weighing only 2.6kg. It has no service life restrictions, requires no supervisory inspections, and comes with a CE certification for quality assurance. - Advanced Polymer Protection:
The outer layer is made of high-performance polymer, offering multi-layer buffering for enhanced drop resistance. - Versatile Air Respirator:
This self-contained open-air respirator is widely used across various industries and is ideal for firefighters and emergency rescue personnel.
Applications:
Designed for safe and effective fire extinguishing, rescue missions, and disaster relief in challenging environments, including heavy smoke, toxic gases, steam, or oxygen-deficient areas.
⭐Type 4 vs Type 3 Cylinders
Wondering how a Type 4 cylinder differs from a Type 3? A Type 4 is built on a PET plastic liner fully overwrapped with carbon fiber, while a Type 3 uses an aluminum liner with a carbon fiber overwrap. Replacing metal with plastic makes the Type 4 lighter than an equivalent Type 3 and resistant to corrosion from moisture and harsh rescue environments. Less weight on the back and no liner corrosion — that is why many firefighting and rescue crews choose Type 4 SCBA air tanks like this 6.8L 300 bar model.
⭐Frequently Asked Questions
What is a Type 4 cylinder?
A Type 4 cylinder is a fully wrapped composite pressure vessel: a PET (plastic) liner overwrapped with carbon fiber. It is the lightest of the four cylinder construction types, which is why it is popular for portable breathing-air applications such as firefighting SCBA sets. This model is CE and EN 12245 certified and rated for a 300 bar working pressure.
Is this Type 4 cylinder compatible with standard SCBA valves?
The neck thread on this cylinder is M18×1.5, as listed in the specifications. Please compare your valve against this thread size before ordering — or contact us and we will help you confirm compatibility.
How long will the breathing air last?
The 6.8L water capacity stores about 2040L of breathing air at 300 bar, which typically supports 45–60 minutes of use, depending on breathing rate and conditions.
Also see our ACECARE 6.8L Type 4 SCBA cylinder for fire fighting — another carbon fiber breathing-air option with a PET plastic liner.
⭐Company Introduction
Shenyang Acecare Technology Co., Ltd. deals with the import & export of machinery, equipment, and cylinder products. Acecare is involved in all kinds of business concerning cylinders. We have extensive business contact with customers in more than 150 countries and regions all around the world. We look forward to cooperating with friends from all over the world helping each other and developing great causes together for our mutual benefit.
Welcome to contact us by email, Trademanager, WhatsApp
Email: [email protected] Whatsapp: +86 134 7835 1496
| Weight | 4 lbs |
|---|---|
| Dimensions | 18 × 18 × 59 in |
| Cylinder Type | Type 4 |
| Liner | PET plastic liner |
